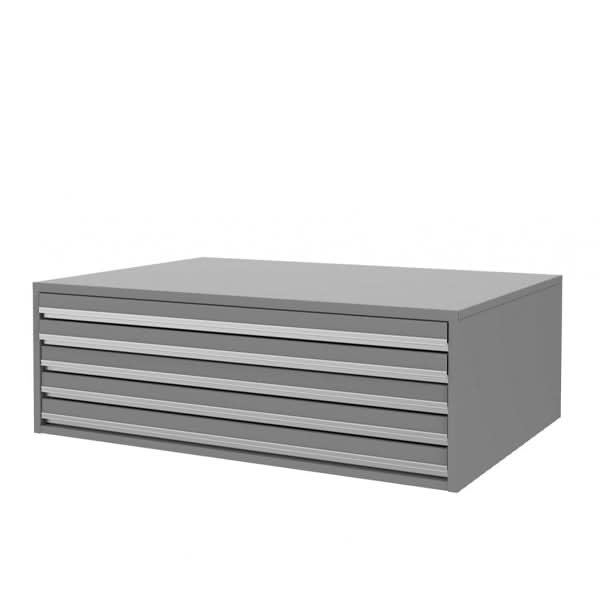

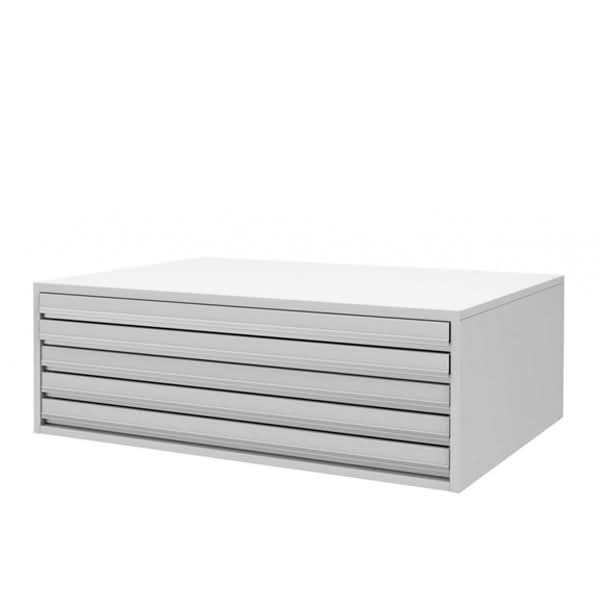

Horizontal Plan Cabinet

Product Description

Dependable storage tool in engineering and architectural offices. Available in either 5 or 10 drawer models, Horizontal Plan Cabinets are suitable for storing thick or fragile items or situations where attaching an adhesive strip is not appropriate.

Features
  • Heavy duty Drawers and Runners with fully welded body
  • Available in 3 Sizes in both 5 drawer and 10 drawer configurations
  • 5 drawer internal drawer height 50mm
  • 10 drawer internal drawer height 25mm

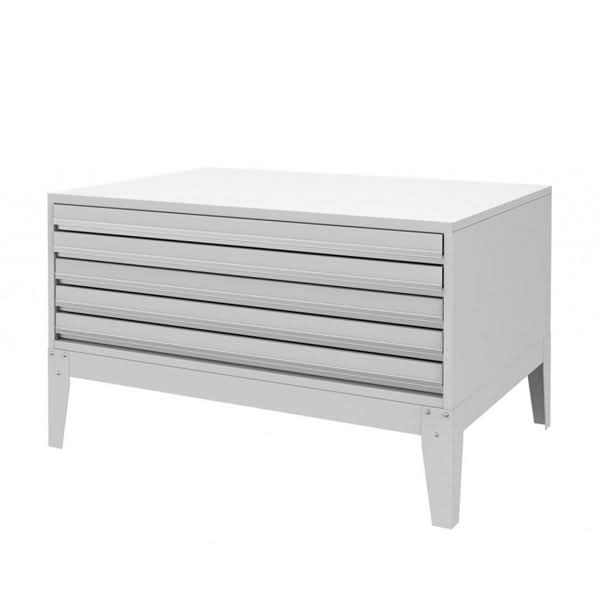

  • Available with optional castors or stand (300mm High)
  • Horizontal Plan Cabinets can be stacked two high
  • A full-width metal return at rear of the drawer prevents plans from being damaged or curling
  • A chromed rod flap at the front of the drawer keeps plans flat
  • Welded body made of 100% recyclable steel with up to 20% recycled content
  • Standard Powder Coat Colours - Over 300 Colours Available
  • Vertical Plan Cabinet Available
Specifications
  • Paper Size:
  • A1: 594 x 841mm
  • A0: 841 x 1189mm
  • B1: 707 x 1000mm
  • A1 Plan Cabinets:
  • O/A Width: 950mm
  • O/A Depth: 650mm
  • Cabinet Only Height: 470mm
  • Cabinet with Stand Height: 770mm
  • Mobile Cabinet Height:  605mm
  • 5 Drawer Internal Height: 50mm
  • 10 Drawer Internal Height: 25mm
  • A0 Plan Cabinets:
  • O/A Width: 1295mm
  • O/A Depth: 900mm
  • Cabinet Only Height: 470mm
  • Cabinet with Stand Height: 770mm
  • Mobile Cabinet Height:  605mm
  • 5 Drawer Internal Height: 50mm
  • 10 Drawer Internal Height: 25mm
  • B1 Plan Cabinets:
  • O/A Width: 1170mm
  • O/A Depth: 900mm
  • Cabinet Only Height: 470mm
  • Cabinet with Stand Height: 770mm
  • Mobile Cabinet Height:  605mm
  • 5 Drawer Internal Height: 50mm
  • 10 Drawer Internal Height: 25mm
    • Warranty: 10 Years
